For measurement of relative and absolute pressure.
| Series | Comments | Photos | Technical sheet |
|---|

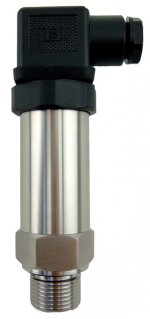

| CERAMIC CELL TECHNOLOGY – PVQYB100 |
Use for gases or liquids.
- Measurement range from –15 to +8750 psi.
- Output signal 4-20 mA 2 wires / power supply 11-30 V.
- Construction in stainless steel with seal VITON (others on request).
- Connector DIN or cable.
- Setting of zero and sensibility.
- Fitting G1/4” or G1/2”.
- Accuracy : + 0,3 % EM
|
 |
PDF |
| Silicium sell technology – PVGPT210 |
Use for gases or liquids.
- Measurement range from 0+1.45 psi to 0+14500 psi.
- Output signal 4-20 mA 2 wires / power supply 9-33 V.
- Construction in stainless steel completely tight.
- Connector DIN, BINDER or LUMBERG 4 or 5 poles or cable.
- Setting by potentiometer (with connector DIN and LUMBERG).
- Great variety of connections such as G ¼", G ½", flush diaphragm ...
- High temperature type.
- Accuracy + 0,5, 0,25 or 0,1 % of EM.
|
 |
PDF |
| CERAMIC CELL TECHNOLOGY – PVTS-800-2123-HP |
Use for gases or liquids.
- Measurement range from 0+15 000psi to 0+120 000psi.
- Output signal 4-20 mA 2 wires / power supply 11-33 V.
- Construction in stainless steel with seal FPM/EPDM/NBR/MVQ/CR.
- Connector DIN, DIN ROND, cable.
- Setting of zero and sensibility on request.
- Fitting BSP 1/2”, 1/4” NPT, 1/2” NPT, other.
- Accuracy + 0,3 %.
|
 |
PDF |
| OTHER REALIZATIONS |
For level measurement of liquids even aggressive.
- Gauge from 1.45 psi.
- Output signal 4-20 mA 2 wires / power supply 9-33 V.
- Integrated setting at atmospheric pressure.
|
 |
PDF |
For measurement of differential pressures
| Series | Comments | Photos | Technical sheet |
|---|
| Silicium gauge - PVBP93420d |
For control of light air flows in the field of air conditioning and to measure low pressures in the environmental and medical sectors.
- Utilization for air and neutral gases.
- Measurement range : 0, +0,044, +0.073, +0.15, +0.44, + 0.73 psi.
- Output signal 0,5 to 4,5 V / power supply 10,2 – 33 V.
- Polycarbonate/Polyamide construction and diaphragm in silicon rubber.
- Connector step of 2,5 mm (AMP DUOPLUG) or pins to be mounted on printing circuit.
- Ferrules for hoses diameter 6,2 mm.
- Fixing system by angle iron or plate.
- Accuracy : + 0,25 % EM
|
 |
PDF |
